S3PDB25 - Three Phase Rectifier Modules

S3PDB25 Description

S3PDB25 Three Phase Rectifier Modules Dimensions in mm (1mm=0.0394") Type S3PDB25N08 S3PDB25N12 S3PDB25N14 S3PDB25N16 S3PDB25N18 VRSM V 900 1300 1500 .

S3PDB25 Features

* Package with DCB base plate
* Isolation voltage 3000 V~
* Planar passivated chips
* leads suitable for PCB soldering

S3PDB25 Applications

* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors ADVANTAGES
* Easy to mount with two screws
* Space and weight savings
* Improved temperature and power cycling

📥 Download Datasheet

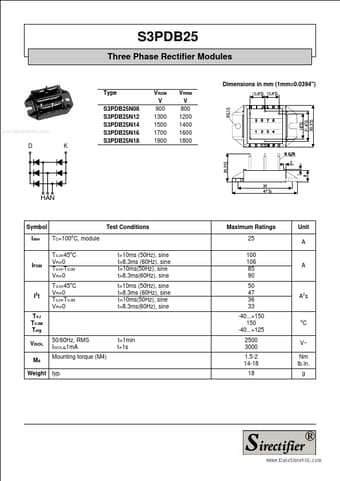

Preview of S3PDB25 PDF
