S3P70F4 single-chip CMOS microcontroller

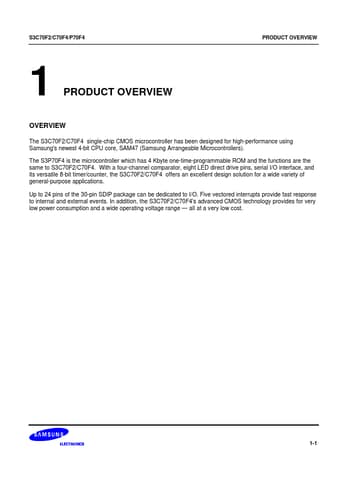

S3C70F2/C70F4/P70F4 PRODUCT OVERVIEW 1 PRODUCT OVERVIEW OVERVIEW The S3C70F2/C70F4 single-chip CMOS microcontroller has been designed for high-performance using Samsung's newest 4-bit CPU core, SAM47 (Samsung Arrangeable Microcontrollers). The S3P70F4 is the microcontroller which has 4 Kbyte one-time-programmable ROM and the functions are the same to S3C70F2/C70F4. With a four-channel comparator, eight LED direct drive pins, serial I/O interface, and its versatile 8-bit timer/counter, the S3.

S3P70F4 Features

* SUMMARY Memory

* Bit Sequential Carrier

* 512 × 4-bit data memory (RAM) 2048 × 8-bit program memory (ROM):S3C70F2 4096 × 8-bit program memory (ROM):S3C70F4 Supports 16-bit serial data transfer in arbitrary format Interrupts

* 24 I/O Pins

S3P70F4_Samsungsemiconductor.pdf

S3P70F4 Datasheet Preview — Preview of S3P70F4 PDF

Datasheet Details

Part number:

S3P70F4

Manufacturer:

Samsung semiconductor

File Size:

271.35 KB

Description:

Single-chip cmos microcontroller.
