S3P72B9 Datasheet - Samsung semiconductor

S3P72B9 The S3C72B5/C72B7/C72B9 single-chip CMOS microcontroller has been designed for high performance using Samsungs newest 4-bit CPU core/ SAM47 (Samsung A

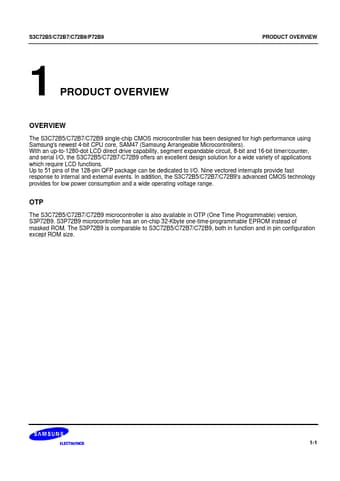

S3C72B5/C72B7/C72B9/P72B9 PRODUCT OVERVIEW 1 OTP PRODUCT OVERVIEW OVERVIEW The S3C72B5/C72B7/C72B9 single-chip CMOS microcontroller has been designed for high performance using Samsung's newest 4-bit CPU core, SAM47 (Samsung Arrangeable Microcontrollers). With an up-to-1280-dot LCD direct drive capability, segment expandable circuit, 8-bit and 16-bit timer/counter, and serial I/O, the S3C72B5/C72B7/C72B9 offers an excellent design solution for a wide variety of applications which require LCD.

S3P72B9 Features

* SUMMARY Memory

* 3,584 × 4-bit RAM (Excluding LCD Display RAM) 16,384/24,576/32,768 × 8-bit ROM 16-Bit Timer/Counter

* 51 I/O Pins

* I/O: 47 pins (32 pins are configurable as SEG pins) Input only: 4 pins

* Programmable

S3P72B9_Samsungsemiconductor.pdf

S3P72B9 Datasheet Preview — Preview of S3P72B9 PDF

Datasheet Details

Part number:

S3P72B9

Manufacturer:

Samsung semiconductor

File Size:

289.45 KB

Description:

The s3c72b5/c72b7/c72b9 single-chip cmos microcontroller has been designed for high performance using samsungs newest 4-bit cpu core/ sam47 (samsung a.
