S524L50D51

16K-bit Serial EEPROM

Samsung semiconductor

S524L50D51 Features

* is a hardware-based write protection circuit for the entire memory area. Hardware-based write protection is controlled by the state of the write-protect (WP) pin. Using one-page write mode, you can load up to 16 bytes of data into the EEPROM in a single write operation. Another significant feature o

S524L50D51 General Description

Name A0, A1, A2 VSS SDA Type

*

* I/O No internal connection Ground pin. Bi-directional data pin for the I C-bus serial data interface. Schmitt trigger input and open-drain output. An external pull-up resistor must be connected to VDD. Schmitt trigger input pin for serial clock input.

S524L50D51 Datasheet (142.16 KB)

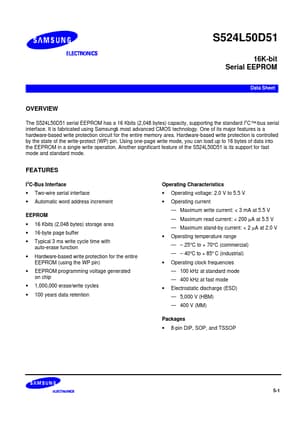

S524L50D51 Datasheet Preview — Preview of S524L50D51 PDF

Datasheet Details

Part number:

S524L50D51

Manufacturer:

Samsung semiconductor

File Size:

142.16 KB

Description:

16k-bit serial eeprom.
S524L50D51 16K-bit Serial EEPROM Data Sheet OVERVIEW The S524L50D51 serial EEPROM has a 16 Kbits (2,048 bytes) capacity, supporting the standard I2C™.
