S524L50X51 Datasheet - Samsung semiconductor

S524L50X51 - 16K-bit Serial EEPROM

Name A0, A1, A2 VSS SDA Type * * I/O No internal connection Ground pin.

Bi-directional data pin for the I C-bus serial data interface.

Schmitt trigger input and open-drain output.

An external pull-up resistor must be connected to VDD.

Schmitt trigger input pin for serial clock input

S524L50X51 Features

* is a hardware-based write protection circuit for the entire memory area. Hardware-based write protection is controlled by the state of the write-protect (WP) pin. Using one-page write mode, you can load up to 16 bytes of data into the EEPROM in a single write operation. Another significant feature o

S524L50X51_Samsungsemiconductor.pdf

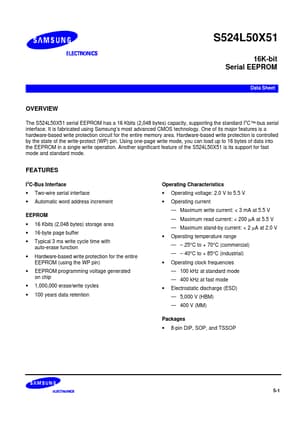

Preview of S524L50X51 PDF
S524L50X51 Datasheet Preview Page 2 S524L50X51 Datasheet Preview Page 3

Datasheet Details

Part number:

S524L50X51

Manufacturer:

Samsung semiconductor

File Size:

140.63 KB

Description:

16k-bit serial eeprom.
