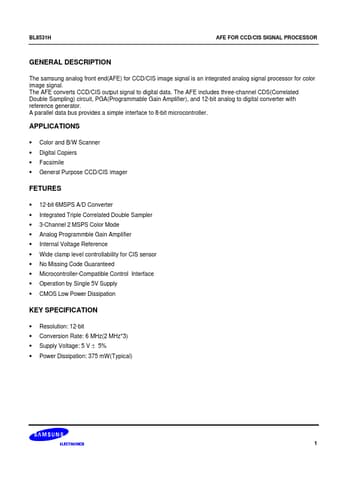

Preview of BL8531H PDF
BL8531H Datasheet Preview Page 2 BL8531H Datasheet Preview Page 3

Datasheet Details

Part number:

BL8531H

Manufacturer:

Samsung

File Size:

219.94 KB

Description:

12 bit 10msps adc.

BL8531H - 12 Bit 10MSPS ADC

The samsung analog front end(AFE) for CCD/CIS image signal is an integrated analog signal processor for color image signal.

The AFE converts CCD/CIS output signal to digital data.

The AFE includes three-channel CDS(Correlated Double Sampling) circuit, PGA(Programmable Gain Amplifier), and 12-bit ana

BL8531H Features

* r function of the PGA is as follows. H(X) = 1/6

* X + 5/6, where the range of X is 0 to 31. Thus, the minimum gain value is equal to 5/6, and the maximum gain value is
