BL8530

PFM STEP-UP DC/DC CONVERTER

BL8530 Features

* º The BL8530 series are CMOS-based PFM step-up DC-DC Converter. The converter can start up by supply voltage as low as 0.8V, and capable of delivering maximum 200mA output current at 3.3V output with 1.8V input Voltage. Quiescent current drawn from power source is as low as 7uA. All of these featur

BL8530 General Description

º 1 £º Internal Tr. Driver £¬ Without Enable circuit 2£º Internal Tr. Driver£¬ With Enable circuit 3 £º External Tr. Driver £¬ Without Enable circuit 4£º External Tr. Driver£¬ With Enable circuit Output Voltage£º 25¡-¡ 2.5V 30¡-¡ 3.0V ¡60¡-¡ 6.0V (In 0.1V step) www.belling.com.cn Ver1.0 1/14 Free D.

BL8530 Datasheet (241.70 KB)

Preview of BL8530 PDF

Datasheet Details

Part number:

BL8530

Manufacturer:

Belling

File Size:

241.70 KB

Description:

Pfm step-up dc/dc converter.

📁 Related Datasheet

BL8530 High efficiency and low noise PFM DC / DC boost regulator (ETC)

BL8530C MULTI-FUNTION STEP-UP DC/DC CONTROLLER (BELLING)

BL8531 High Efficiency Low Noise PFM Step-up DC/DC Converter (SHANGHAI BELLING)

BL8531C Multi-Function Step-up DC/DC Controller (BELLING)

BL8531H 12 Bit 10MSPS ADC (Samsung)

BL8531H-ADC 12 Bit 10MSPS ADC (Samsung)

BL8532 White LED PFM Step-Up DC-DC Converter (SHANGHAI BELLING)

BL8532B White LED PFM Step-Up DC-DC Converter (BELLING)

BL8534 High Efficiency Low Noise PFM Step-up DC/DC Converter (Belling)

BL8536 Synchronous Boost Converter (BELLING)

TAGS

BL8530 PFM STEP-UP CONVERTER Belling

Image Gallery

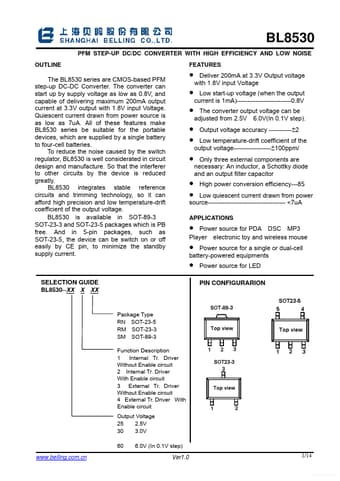

BL8530 Datasheet Preview Page 2 BL8530 Datasheet Preview Page 3
