BL8531H-ADC - 12 Bit 10MSPS ADC

Samsung

BL8531H-ADC Description

12BIT 10MSPS ADC GENERAL .
The BL8531H_ADC is a CMOS 12bit analog-to-digital converter (ADC).

BL8531H-ADC Features

* Resolution : 12bit - Maximum Conversion Rate : 10MHz - Power Supply : 5V - Power Consumption : 100mW (typical) - Reference Voltage : 3.5V, 1.5V (dual reference) - Input Range : 0.5V ~ 4.5V (4.0VP-P) - Differential Linearity Error : ±0.7 LSB - Integral Linearity Error : ±1.0 LSB - Signal to Noise & D

BL8531H-ADC Applications

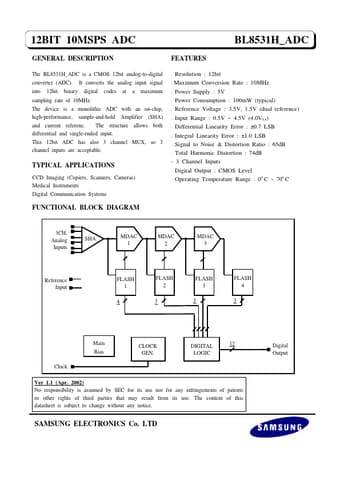

* CCD Imaging (Copiers, Scanners, Cameras) Medical Instruments Digital Communication Systems FUNCTIONAL BLOCK DIAGRAM 3CH. Analog Inputs SHA MDAC 1 MDAC 2 MDAC 3 Reference Input FLASH 1 4 FLASH 2 3 FLASH 3 3 FLASH 4 3 Main Bias Clock CLOCK GEN. DIGITAL LOGIC 12 Digital Output Ver 1.1

📥 Download Datasheet

BL8531H-ADC Datasheet Preview — Preview of BL8531H-ADC PDF

Datasheet Details

Part number: BL8531H-ADC
Manufacturer: Samsung
File Size: 136.99 KB
Datasheet: BL8531H-ADC_Samsung.pdf
Description: 12 Bit 10MSPS ADC
