K4S560432E-UC75 - SDRAM 256Mb E-die

K4S560432E-UC75 Description

SDRAM 256Mb E-die (x4, x8, x16) CMOS SDRAM 256Mb E-die SDRAM Specification 54 TSOP-II with Pb-Free (RoHS compliant) Revision 1.3 August 2004 * .

K4S560432E-UC75 Features

* JEDEC standard 3.3V power supply
* LVTTL compatible with multiplexed address
* Four banks operation
* MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave)
* All inputs are

📥 Download Datasheet

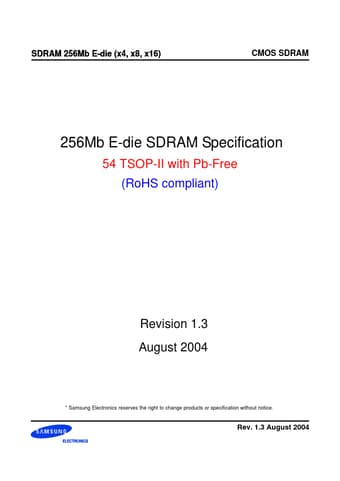

Preview of K4S560432E-UC75 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
K4S560432E-UC75
Manufacturer
Samsung
File Size
195.84 KB
Datasheet
K4S560432E-UC75-Samsung.pdf
Description
SDRAM 256Mb E-die
