K4S560432B Datasheet, Lvttl, Samsung semiconductor

K4S560432B Features

• Lvttl
• JEDEC standard 3.3V power supply
• LVTTL compatible with multiplexed address
• Four banks operation
• MRS cycle with address key programs -. CAS latenc

PDF File Details

Part number:

K4S560432B

Manufacturer:

Samsung semiconductor

File Size:

130.41kb

Download:

📄 Datasheet

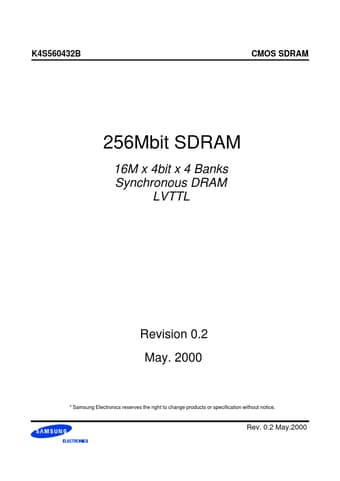

Description:

256mbit sdram 16m x 4bit x 4 banks synchronous dram lvttl. The K4S560432B is 268,435,456 bits synchronous high data rate Dynamic RAM organized as 4 x 16,785,216 words by 4 bits, fabricated wit

K4S560432B Application

• Applications ORDERING INFORMATION Max Freq. 133MHz(CL=3) 100MHz(CL=2) 100MHz(CL=3) LVTTL Interface Package 54pin TSOP(II) FUNCTIONAL BLOCK DIAGRA
