K9XXG16UXM-E, K9X - 256M x 8 Bit / 128M x 16 Bit NAND Flash Memory

Name: K9XXG16UXM-E
SKU: K9XXG16UXM-E-389229

Samsung

The K9XXG16UXM-E by Samsung is a 256M x 8 Bit / 128M x 16 Bit NAND Flash Memory. Below is the official datasheet preview.

Datasheet Details

Part number	K9XXG16UXM-E, K9X
Manufacturer	Samsung
File Size	680.06 KB
Description	256M x 8 Bit / 128M x 16 Bit NAND Flash Memory
Datasheet	K9X-XG0.pdf
Note	This datasheet PDF includes multiple part numbers: K9XXG16UXM-E, K9X. Please refer to the document for exact specifications by model.

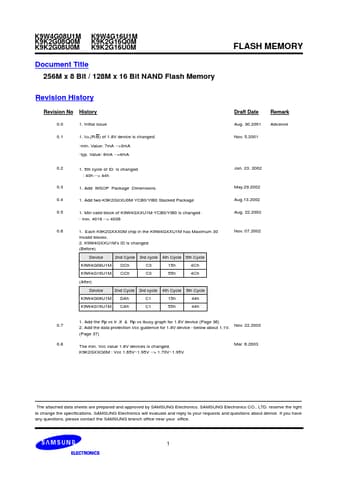

Additional preview pages of the K9XXG16UXM-E datasheet.

Offered in 256Mx8bit or 128Mx16bit, the K9K2GXXX0M is 2G bit with spare 64M bit capacity.

Voltage Supply -1.8V device(K9K2GXXQ0M): 1.7V~1.95V -3.3V device(K9XXGXXUXM): 2.7 V ~3.6 V.
Organization - Memory Cell Array -X8 device(K9K2G08X0M) : (256M + 8,192K)bit x 8bit -X16 device(K9K2G16X0M) : (128M + 4,096K)bit x 16bit - Data Register -X8 device(K9K2G08X0M): (2K + 64)bit x8bit -X16 device(K9K2G16X0M): (1K + 32)bit x16bit - Cache Register -X8 device(K9K2G08X0M): (2K + 64)bit x8bit -X16 device(K9K2G16X0M): (1K + 32)bit x16bit.
Automatic Program and Erase - Pag.
