LTN156AT17-W Datasheet (Samsung)

LTN156AT17-W, TFT LCD

* * * * * * * * *-( 4 ) 1.

Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings * * * * * * * * *-( 5 ) 2.

Optical Characteristi

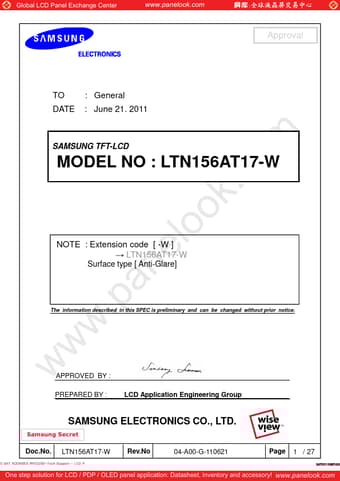

Global LCD Panel Exchange Center www.panelook.com Approval TO : General DATE : June 21.

2011 SAMSUNG TFT-LCD MODEL NO : LTN156AT17-W NOTE : Extension code [ -W ] ĺ LTN156AT17-W Surface type [ Anti-Glare] The information described in this SPEC is preliminary and can be changed without prior notice.

APPROVED BY : PREPARED BY : LCD Application Engineering Group SAMSUNG ELECTRONICS CO., LTD.

6DPVXQJ 6HFUHW Doc.No.

LTN156AT17-W Rev.No 04-A00-G-110621 Page 1 / 27 One step solution for LCD /

LTN156AT17-W Features

* 1366 x 768 pixels resolution (16:9)

* Fast Response Time

* Low power consumption

* LED BLU Structure

* DE (Data enable) only mode

* 3.3V LVDS Interface

* On board EDID chip

* RoHS compliance

* PVC free compliance

* BFR
