M471A5244BB0 - 260pin Unbuffered SODIMM
7 6.
INPUT/OUTPUT FUNCTIONAL DESCRIPTION 8 7.
FUNCTION BLOCK DIAGRAM 10 7.1 4GB, 512Mx64 Module (Populated as 1 rank of x16 DDR4 SDRAMs) 10 7.2 8GB, 1Gx64 Module (Populated as 1 rank of x8 DDR4 2133Mbps SDRAMs, A0) 11 7.3 8GB, 1Gx64 Module (Populated as 1 rank of x8 DDR4 2133/2400/2666Mbps SDRAMs, A
Rev.
2.2, Nov.

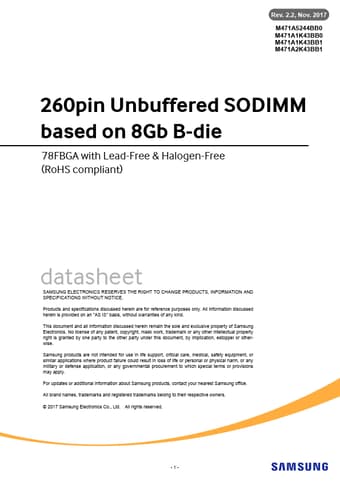

2017 M471A5244BB0 M471A1K43BB0 M471A1K43BB1 M471A2K43BB1 260pin Unbuffered SODIMM based on 8Gb B-die 78FBGA with Lead-Free & Halogen-Free (RoHS compliant) datasheet SAMSUNG ELECTRONICS RESERVES THE RIGHT TO CHANGE PRODUCTS, INFORMATION AND SPECIFICATIONS WITHOUT NOTICE.
Products and specifications discussed herein are for reference purposes only.
All information discussed herein is provided on an "AS IS" basis, without warranties of any kind.
This document and all information disc
