M470L3224BT0 256MB DDR SDRAM MODULE

The Samsung M470L3224BT0 is 32M bit x 64 Double Data Rate SDRAM high density memory modules based on first gen of 256Mb DDR SDRAM respectively. The Samsung M470L3224BT0 consists of eight CMOS 16M x 16 bit with 4banks Double Data Rate SDRAMs in 66pin TSOPII(400mil) packages mounted on a 200pin glass-.

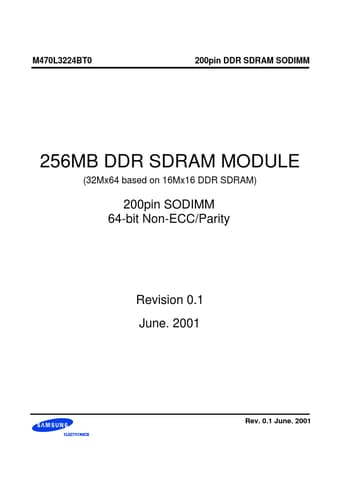

M470L3224BT0 200pin DDR SDRAM SODIMM 256MB DDR SDRAM MODULE (32Mx64 based on 16Mx16 DDR SDRAM) 200pin SODIMM 64-bit Non-ECC/Parity Revision 0.1 June. 2001 Rev. 0.1 June. 2001 M470L3224BT0 Revision History Revision 0.0 (Apr. 2001) 1. First release. 200pin DDR SDRAM SODIMM Revision 0.1 (June. 2001) 1. Changed module current speificaton 2. Changed typo size on module PCB in package dimesions. (from 2.6mm to 3mm). 3. Changed AC parameter table. Rev. 0.1 June. 2001 M470L3224BT0 200pin DDR .

M470L3224BT0 Features

* hz for DDR266A & DDR266B; DQ,DM and DQS inputs changing twice per clock cycl
