PHT-12x-xx-L-x - PRESS FIT .025 SQ POST HEADER

This page provides the datasheet information for the PHT-12x-xx-L-x, a member of the PHT-10x-xx-L-x PRESS FIT .025 SQ POST HEADER family.

📥 Download Datasheet

Datasheet preview – PHT-12x-xx-L-x

Datasheet Details

Part number PHT-12x-xx-L-x
Manufacturer Samtec
File Size 776.68 KB
Description PRESS FIT .025 SQ POST HEADER
Datasheet download datasheet PHT-12x-xx-L-x Datasheet
Additional preview pages of the PHT-12x-xx-L-x datasheet.

📁 Similar Datasheet

  • PHT-1901 - LOW PROFILE INTERFACE COUPLING AND HYBRID TRANSFORMERS (Micro Electronics)
  • PHT-1902 - LOW PROFILE INTERFACE COUPLING AND HYBRID TRANSFORMERS (Micro Electronics)
  • PHT-1903 - LOW PROFILE INTERFACE COUPLING AND HYBRID TRANSFORMERS (Micro Electronics)
  • PHT-1904 - LOW PROFILE INTERFACE COUPLING AND HYBRID TRANSFORMERS (Micro Electronics)
  • PHT-41435B - Up to 6 GHz Low Noise Silicon Bipolar Transistor (TELEDYNE)
  • PHT - Thin Film Wraparound Chip Resistors (Vishay)
  • PHT0402 - Thin Film Wraparound Chip Resistors (Vishay)
  • PHT0603 - Thin Film Wraparound Chip Resistors (Vishay)
  • PHT0805 - Thin Film Wraparound Chip Resistors (Vishay)
  • PHT11N06LT - TrenchMOS transistor Logic level FET (NXP)
Other Datasheets by Samtec

Full PDF Text Transcription

Click to expand full text

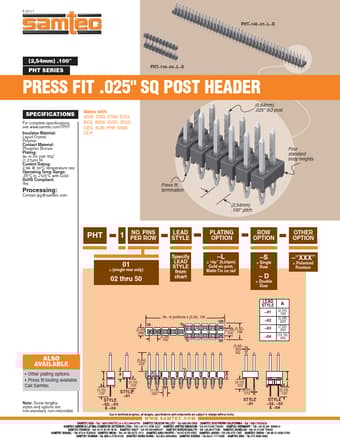

F-211-1 PHT–140–01–L–D (2,54mm) .100" PHT SERIES PHT–110–04–L–S PRESS FIT .025" SQ POST HEADER SPECIFICATIONS For complete specifications see www.samtec.com?PHT Insulator Material: Liquid Crystal Polymer Contact Material: Phosphor Bronze Plating: Au or Sn over 50µ" (1,27µm) Ni Current Rating: 2.9A @ 30°C temperature rise Operating Temp Range: -55°C to +125°C with Gold RoHS Compliant: Yes Mates with: SSW, SSQ, ESW, ESQ, BCS, BSW, IDSD, IDSS, CES, SLW, PHF, SSM, CLH (0,64mm) .025" SQ post Four standard body heights Processing: Contact ipg@samtec.com Press fit termination (2,54mm) .100" pitch www.DataSheet.co.kr PHT 1 NO.
