PHT - Thin Film Wraparound Chip Resistors

Datasheet Summary

Features

  • Operating temperature range:  -55 °C; +215 °C.
  • Storage temperature: -55 °C; +230 °C.
  • Gold terminations (< 1 μm thick).
  • 5 sizes available (0402, 0603, 0805, 1206, 2010); other sizes upon request.
  • Temperature coefficient down to 15 ppm  (-55 °C; +215 °C).
  • Tolerance down to 0.01 %.
  • Load life stability: 0.35 % max. after 2000 h at 220 °C (ambient) at Pn.
  • Shelf life stability: 0.7 % typ. (1 % max. ) after 15 000 h at 230 °C.

📥 Download Datasheet

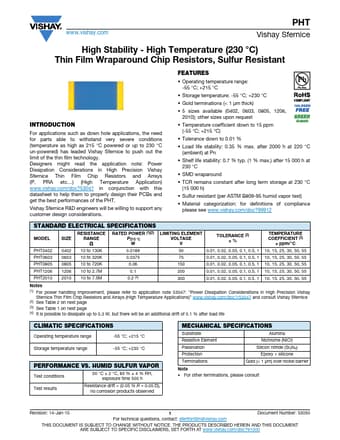

Datasheet preview – PHT

Datasheet Details

Part number PHT
Manufacturer Vishay
File Size 99.64 KB
Description Thin Film Wraparound Chip Resistors
Datasheet download datasheet PHT Datasheet
