PHT-14x-xx-L-x PRESS FIT .025 SQ POST HEADER

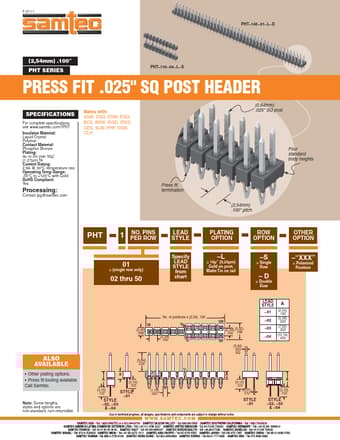

F-211-1 PHT 140 01 L D (2,54mm) .100" PHT SERIES PHT 110 04 L S PRESS FIT .025" SQ POST HEADER SPECIFICATIONS For complete speciﬁcations see www.samtec.com?PHT Insulator Material: Liquid Crystal Polymer Contact Material: Phosphor Bronze Plating: Au or Sn over 50µ" (1,27µm) Ni Current Rating: 2.9A @ 30°C temperature rise Operating Temp Range: -55°C to +125°C with Gold RoHS Compliant: Yes Mates with: SSW, SSQ, ESW, ESQ, BCS, BSW, .

PHT-14x-xx-L-x Datasheet (776.68 KB)

PHT-14x-xx-L-x Datasheet Preview — Preview of PHT-14x-xx-L-x PDF

Datasheet Details

Part number:

PHT-14x-xx-L-x

Manufacturer:

Samtec

File Size:

776.68 KB

Description:

Press fit .025 sq post header.
