DF30AA120 Datasheet - SanRex Corporation

DF30AA120 - DIODE

DIODE(THREE PHASES BRIDGE TYPE) DF30AA120/160 UL;E76102 M Power Diode Module DF30AA is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction output DC current is 30Amp (Tc=117 ) Repetitive peak reverse voltage is up to 1,600V. TjMax=150 Isolated Mounting Base High reliability by unique glass passivation Easy Assem.

DF30AA120_SanRexCorporation.pdf

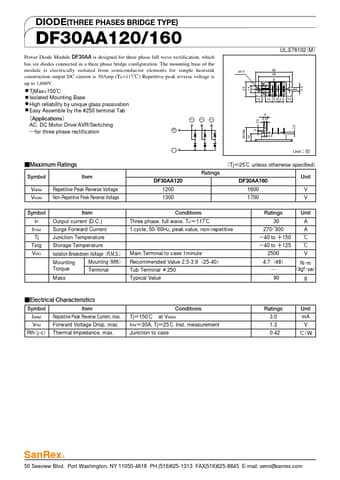

DF30AA120 Datasheet Preview — Preview of DF30AA120 PDF

Datasheet Details

Part number:

DF30AA120

Manufacturer:

SanRex Corporation

File Size:

90.73 KB

Description:

Diode.
