DF30BA40 Datasheet - SanRex Corporation

DF30BA40 - DIODE

DIODE(THREE PHASES BRIDGE TYPE) DF30BA40/80 UL;E76102 M Power Diode Module DF30BA is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction output DC current is 30Amp (Tc=122 ) Repetitive peak reverse voltage is up to 800V. TjMax=150 Isolated Mounting Base High reliability by unique glass passivation Easy Assemble .

DF30BA40_SanRexCorporation.pdf

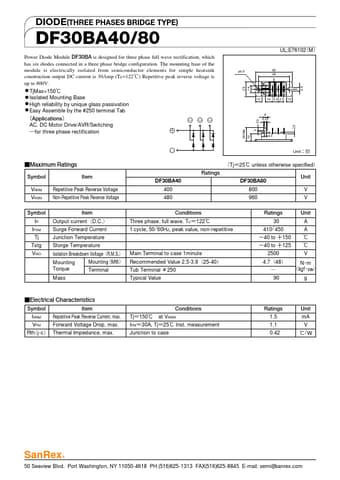

DF30BA40 Datasheet Preview — Preview of DF30BA40 PDF

Datasheet Details

Part number:

DF30BA40

Manufacturer:

SanRex Corporation

File Size:

94.59 KB

Description:

Diode.
