Part number:
DB157
Manufacturer:
SangdeSTMicroelectronics ↗
File Size:
324.87 KB
Description:
Single phase 1.0amp glass passivated bridge rectifier.
Datasheet Details
DB157 Features
* Glass passivated die construction
* Low forward voltage drop
* High current capability
* High surge current capability
* Plastic material-UL flammability 94V-0 Mechanical Data:

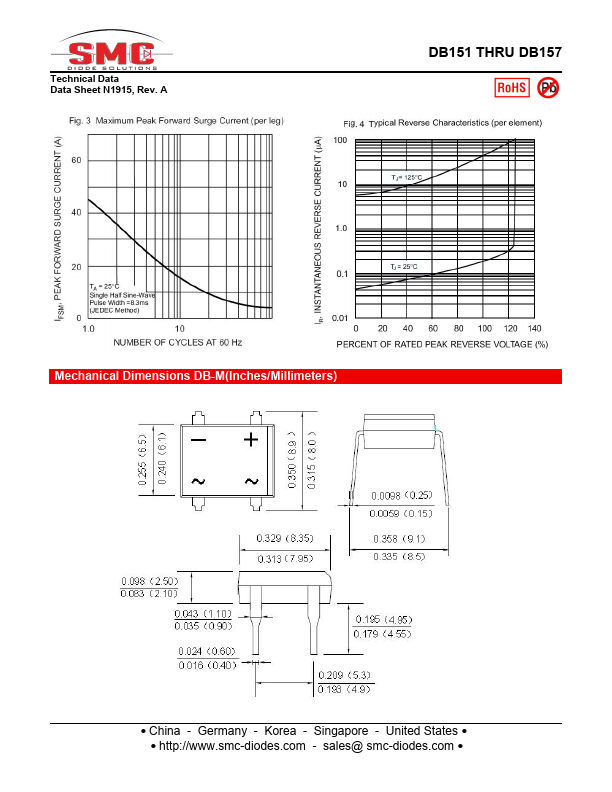

* Case: DB-M, Molded plastic
* Terminals: Plated leads solderable per MIL-STD-202, Method 20
Datasheet Details
DB157
SangdeSTMicroelectronics ↗
324.87 KB
Single phase 1.0amp glass passivated bridge rectifier.
