DSR1B, DSR1A - GENERAL PURPOSE SILICON RECTIFIER

Sangdest Microelectronics

DSR1B Description

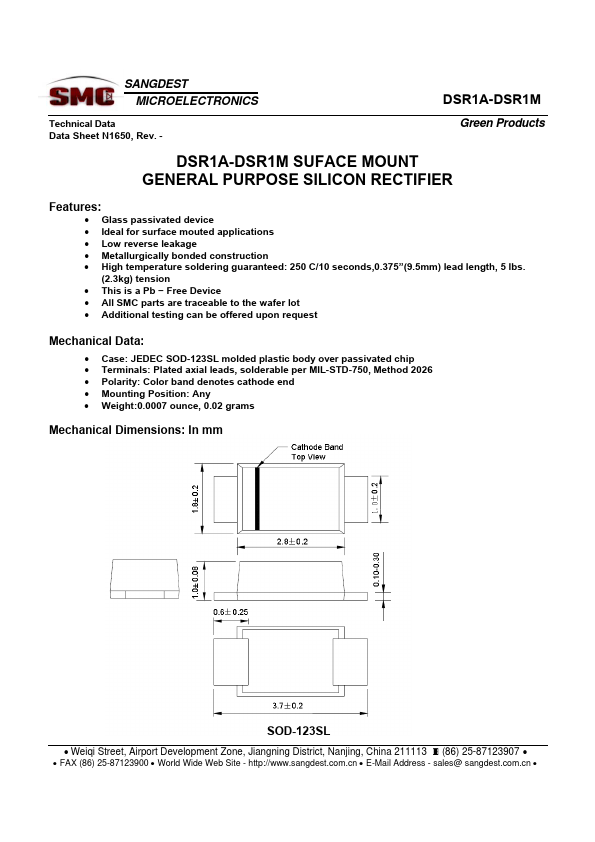

SANGDEST MICROELECTRONICS Technical Data Data Sheet N1650, Rev.- DSR1A-DSR1M Green Products DSR1A-DSR1M SUFACE MOUNT GENERAL PURPOSE SILICON RECTIF.

DSR1B Features

* Glass passivated device

DSR1B Applications

* Low reverse leakage
* Metallurgically bonded construction
* High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension
* This is a Pb
* Free Device
* All SMC parts are traceable to the wafer lot

📥 Download Datasheet

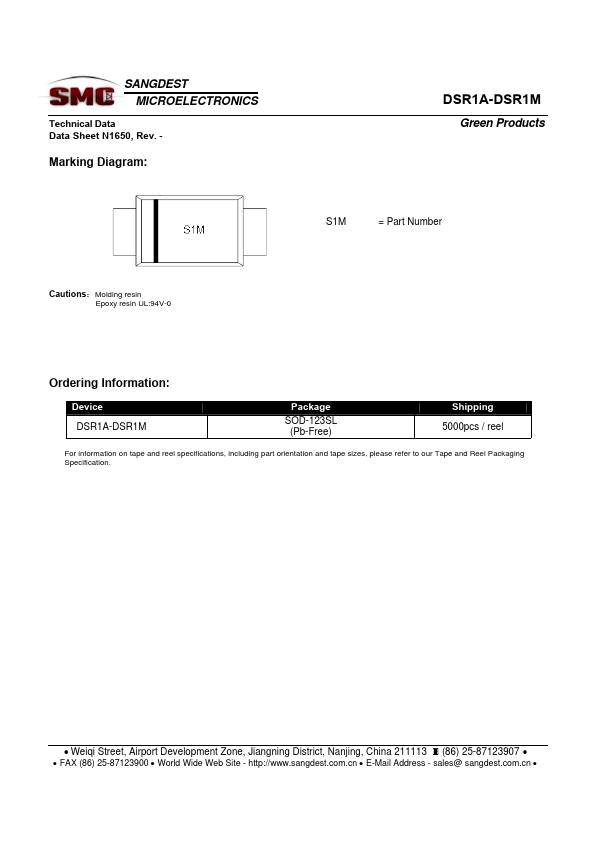

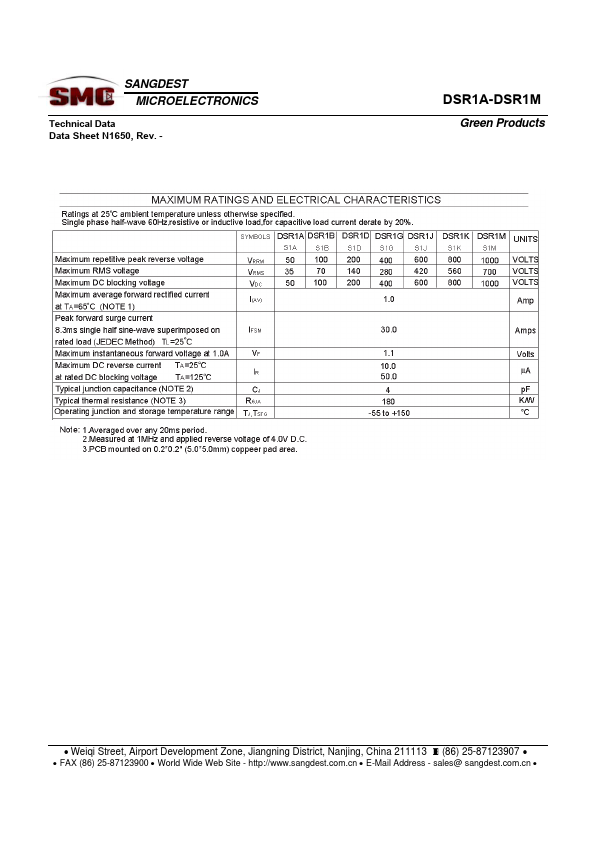

DSR1B Datasheet Preview — This datasheet PDF includes multiple part numbers: DSR1B, DSR1A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: DSR1B, DSR1A
Manufacturer: SangdeSTMicroelectronics ↗
File Size: 152.49 KB
Datasheet: DSR1A-SangdestMicroelectronics.pdf
Description: GENERAL PURPOSE SILICON RECTIFIER
Note: This datasheet PDF includes multiple part numbers: DSR1B, DSR1A.
Please refer to the document for exact specifications by model.
