SF23 - SUPER FAST RECTIFIER

Product Overview

Sangdest Microelectronics

📥 Download Datasheet

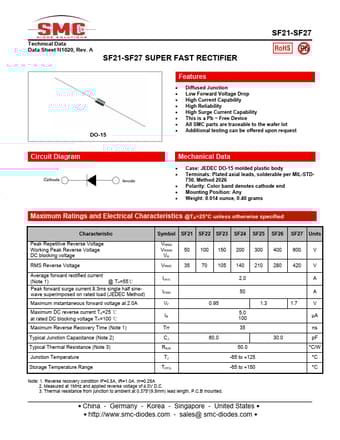

SF23 SUPER FAST RECTIFIER by Sangdest Microelectronics - Datasheet Preview — Datasheet preview – SF23

Datasheet Details

Part number	SF23
Manufacturer	SangdeSTMicroelectronics
File Size	301.92 KB
Description	SUPER FAST RECTIFIER
Datasheet	SF23 Datasheet
Note	This datasheet PDF includes multiple part numbers: SF23, SF21. Please refer to the document for exact specifications by model.
Additional preview pages of the SF23 datasheet.

Product details

Features

Diffused Junction.
Low Forward Voltage Drop.
High Current Capability.
High Reliability.
High Surge Current Capability.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Mechanical Data.
Case: JEDEC DO-15 molded plastic body.
Terminals: Plated axial leads, solderable per MIL-STD- 750, Method 2026.
Polarity: Color band denotes cathode end.
Mo.
