SF2315E Datasheet - muRata

SF2315E SAW Filter

Low-loss 782 MHz SAW Filter Designed for 50 ohm Source/Load Absolute Maximum Ratings Rating Input Power Level DC Voltage on any Non-ground Terminal Operating Temperature Range Storage Temperature Range in Tape and Reel Maximum Soldering Profile, 5 cycles/10 seconds maximum Value +25 3 -40 to +85 -40 to +85 265 Units dBm V °C °C °C RoHS Compliance This component is compliant with RoHS directive. This component was always RoHS compliant from the first date of manufacture. SF.

SF2315E-muRata.pdf

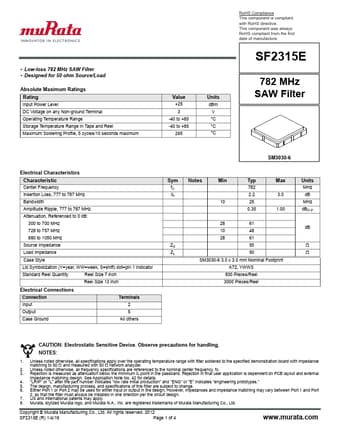

Preview of SF2315E PDF
SF2315E Datasheet Preview Page 2 SF2315E Datasheet Preview Page 3

Datasheet Details

Part number:

SF2315E

Manufacturer:

muRata

File Size:

397.69 KB

Description:

Saw filter.
