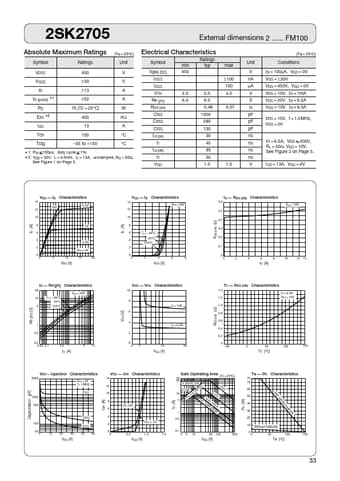

2SK2705 Absolute Maximum Ratings Symbol VDSS VGSS ID ID (pulse) 1 PD EAS 2 I AS Tch Tstg Ratings 450 ± 30 ± 13 ± 52 75 (Tc = 25ºC) 400 13 150 55 to +150 (Ta = 25ºC) External dimensions 2 FM100 Electrical Characteristics Symbol V(BR) DSS I GSS I DSS A A W mJ A ºC ºC VTH Re (yfs) RDS (on) Ciss Coss Crss t d (on) tr t d (off) tf VSD 2.0 6.0 3.0 9.0 0.48 1300 280 130 30 40 95 50 1.0 1.5 0.57 min 450 Ratings typ max ± 100 100 4.0 Unit V nA µA V S Ω pF pF pF ns ns ns ns V I SD = 1.
