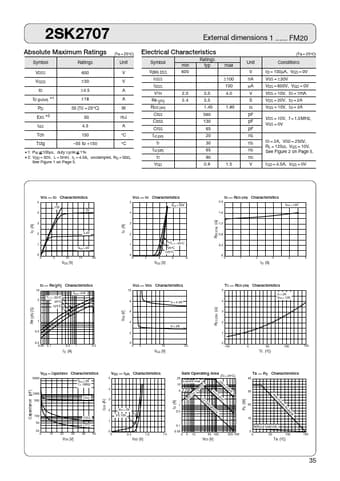

2SK2707 Datasheet (Sanken electric)

2SK2707, MOSFET

2SK2707 Absolute Maximum Ratings Symbol VDSS VGSS ID ID (pulse) 1 PD EAS 2 I AS Tch Tstg Ratings 600 ± 30 ± 4.5 ± 18 35 (Tc = 25ºC) 50 4.5 150 55 to +150 (Ta = 25ºC) External dimensions 1 FM20 Electrical Characteristics Symbol V(BR) DSS I GSS I DSS A A W mJ A ºC ºC VTH Re (yfs) RDS (on) Ciss Coss Crss t d (on) tr t d (off) tf VSD 2.0 2.4 3.0 3.5 1.45 560 130 65 20 30 65 90 0.9 1.5 1.85 min 600 Ratings typ max ± 100 100 4.0 Unit V nA µA V S Ω pF pF pF ns ns ns ns V I SD = 4.5
