2SK2717, 2SK Datasheet - Toshiba Semiconductor

2SK2717 Silicon N-Channel MOSFET

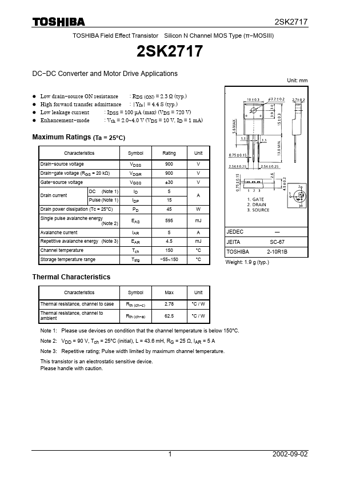

2SK2717 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π MOSIII) 2SK2717 DC DC Converter and Motor Drive Applications Unit: mm l Low drain source ON resistance : RDS (ON) = 2.3 Ω (typ.) l High forward transfer admittance : |Yfs| = 4.4 S (typ.) l Low leakage current : IDSS = 100 µA (max) (VDS = 720 V) l Enhancement mode : Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 mA) Maximum Ratings (Ta = 25°C) Characteristics Drain source voltage Drain

2SK-2717.pdf

This datasheet PDF includes multiple part numbers: 2SK2717, 2SK. Please refer to the document for exact specifications by model.
2SK2717 Datasheet Preview Page 2 2SK2717 Datasheet Preview Page 3

Datasheet Details

Part number:

2SK2717, 2SK

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

248.43 KB

Description:

Silicon n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: 2SK2717, 2SK.
Please refer to the document for exact specifications by model.
