EG1 - Fast Recovery Diode

Datasheet Summary

Description

The EG1 is a fast recovery diode of 400 V / 0.8 A.

The maximum trr of 100 ns is realized by optimizing a life-time control.

Features

  • VRM------------------------------------------------------ 400 V.
  • IF(AV)------------------------------------------------------ 0.8 A.
  • VF--------------------------------------------------------- 1.8 V.
  • trr1-------------------------------------------------------- 100 ns.
  • Bare Leads: Pb-free (RoHS Compliant).
  • Flammability: Equivalent to UL94V-0.

📥 Download Datasheet

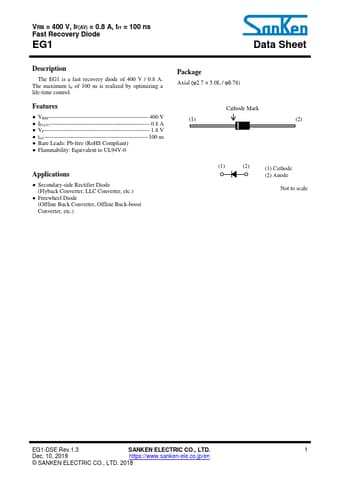

Datasheet preview – EG1
