EG110J - GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER

Product Overview

Zowie

📥 Download Datasheet

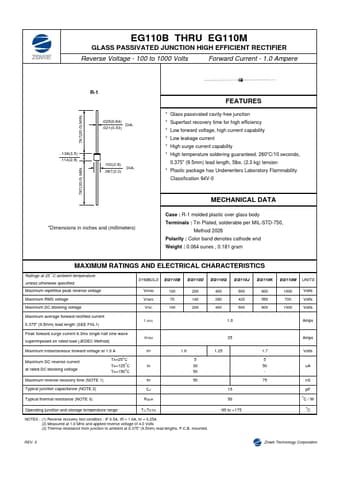

EG110J GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER by Zowie - Datasheet Preview — Datasheet preview – EG110J

Datasheet Details

Part number	EG110J
Manufacturer	Zowie
File Size	37.74 KB
Description	GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
Datasheet	EG110J Datasheet
Note	This datasheet PDF includes multiple part numbers: EG110J, EG110B. Please refer to the document for exact specifications by model.
Additional preview pages of the EG110J datasheet.

Product details

Features

Glass passivated cavity-free junction.
Superfast recovery time for high efficiency.
Low forward voltage, high current capability.
Low leakage current.
High surge current capability.
High temperature soldering guaranteed: 260oC/10 seconds, 0.375" (9.5mm) lead length, 5lbs. (2.3 kg) tension.
Plastic package has Underwriters Laboratory Flammability Classification 94V-0 .787(20.0) MIN.
Dimensions in inches and (millimeters).
