SI8050S, SI8-050, Full-Mold/ Separate Excitation Switching Type

qSI-8000S Series SI-8000S Series Full-Mold, Separate Excitation Switching Type s.

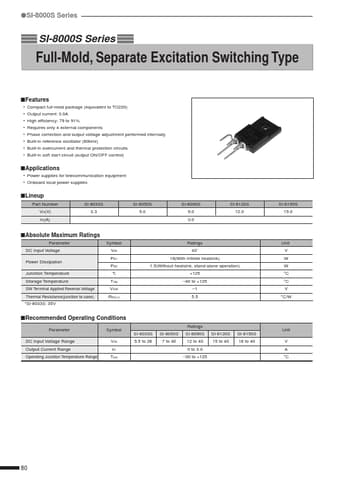

datasheet Preview Page 1 from Datasheet4u.com

SI8-050-S.pdf

SI8050S Datasheet Preview — This datasheet PDF includes multiple part numbers: SI8050S, SI8-050. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SI8050S, SI8-050

Manufacturer:

Sanken ↗ electric

File Size:

63.76 KB

Description:

Full-Mold/ Separate Excitation Switching Type

Note:

This datasheet PDF includes multiple part numbers: SI8050S, SI8-050.
Please refer to the document for exact specifications by model.

Features

* Compact full-mold package (equivalent to TO220) Output current: 3.0A High efficiency: 79 to 91% Requires only 4 external components Phase correction and output voltage adjustment performed internally Built-in reference o

Applications

* Power supplies for telecommunication equipment
* Onboard local power supplies sLineup Part Number VO(V) IO(A) SI-8033S 3.3 SI-8050S 5.0 SI-8090S 9.0 3.0 SI-8120S 12.0 SI-8150S 15.0 sAbsolute Maximum Ratings Parameter DC Input Voltage Power Dissipation Junction Temperature Storage
