Si8045

1KV THREE TO SIX-CHANNEL DIGITAL ISOLATORS

Skyworks

Si8045 Features

* High-speed operation

* Default low output

* DC to 10 Mbps

* Precise timing (typical)

* No start-up initialization required

* 40 ns propagation delay

* Wide Operating Supply Voltage

* 20 ns pulse width distortion

* 3.15

* 5.5 V

* 100 ns minimu

Si8045 General Description

Skyworks’ family of low-power digital isolators are CMOS devices offering substantial data rate, propagation delay, power, size, reliability, and external BOM advantages over legacy isolation technologies. The operating parameters of these products remain stable across wide temperature ranges and t.

Si8045 Datasheet (396.34 KB)

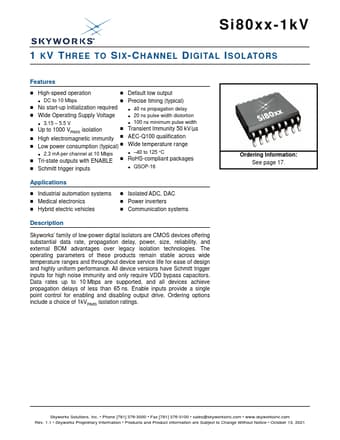

Si8045 Datasheet Preview — Preview of Si8045 PDF

Datasheet Details

Part number:

Si8045

Manufacturer:

Skyworks

File Size:

396.34 KB

Description:

1kv three to six-channel digital isolators.
