SI8016H, SI8016H-Si - High Voltage Green-Mode PWM Controller

SI8016H Description

SI8016H High Voltage Green-Mode PWM Controller with OTP Function GENERAL .
SI8016H is a highly integrated current mode PWM control for flyback converter, optimized for high performance, low standby power consumption and cost.

SI8016H Features

* High Voltage Startup Circuit
* VCC Under Voltage Lockout (UVLO)
* VCC Over voltage Protection (OVP)
* Cycle-by-Cycle Current Limiting (OCP)
* Over Load Protection (OLP)
* Connection of an NTC for Over Temperature Protect

SI8016H Applications

* The SI8016H built-in multiple protection with VCC under voltage lockout (UVLO), VCC over voltage protection (OVP), high voltage startup circuit, VCC clamp, GATE clamp, cycle-by-cycle current limiting (OCP), over load protection (OLP), and leading-edge blanking (LEB) of the current sensing to preven

📥 Download Datasheet

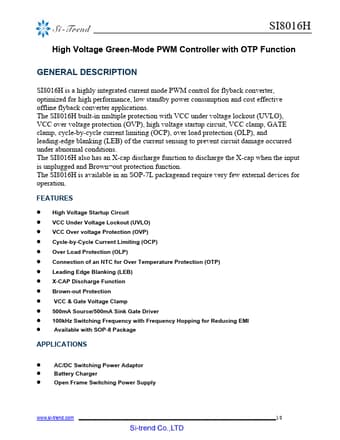

SI8016H Datasheet Preview — This datasheet PDF includes multiple part numbers: SI8016H, SI8016H-Si. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: SI8016H, SI8016H-Si
Manufacturer: Si-trend
File Size: 601.28 KB
Datasheet: SI8016H-Si-trend.pdf
Description: High Voltage Green-Mode PWM Controller
Note: This datasheet PDF includes multiple part numbers: SI8016H, SI8016H-Si.
Please refer to the document for exact specifications by model.
