SLA4030 Datasheet - Sanken electric

SLA4030 NPN Darlington

SLA4030 NPN Darlington General purpose External dimensions A SLA (12-pin) Absolute maximum ratings Symbol Ratings (Ta=25°C) Electrical characteristics Unit Symbol Specification min typ max Unit VCBO 120 V ICBO 10 µA VCEO 100 V IEBO 10 mA VEBO 6 V VCEO 100 V IC 4 A hFE 2000 ICP 6 (PW≤1ms, Du≤50%) A VCE(sat) 1.5 V IB 0.5 A 5 (Ta=25°C) PT W 25 (Tc=25°C) VISO 1000 (Between fin and lead pin, AC) Vrms Tj 150 °C Tstg

SLA4030_Sankenelectric.pdf

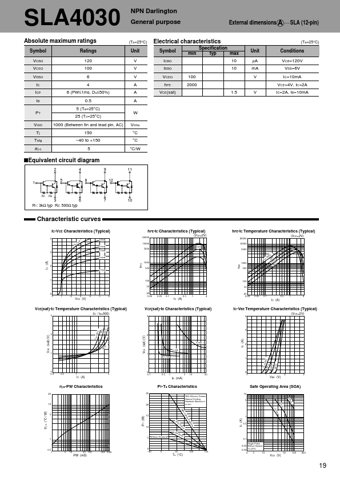

Preview of SLA4030 PDF
SLA4030 Datasheet Preview Page 2

Datasheet Details

Part number:

SLA4030

Manufacturer:

Sanken ↗ electric

File Size:

381.61 KB

Description:

Npn darlington.
