SV03YS Datasheet (Sanken electric) - (SV0xYS) Symmetrical type Silicon Varistors

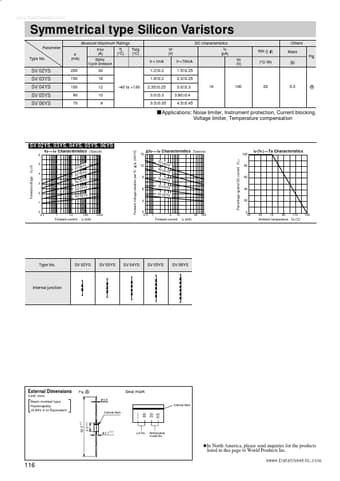

SV03YS, (SV0xYS) Symmetrical type Silicon Varistors

www.DataSheet4U.com Symmetrical type Silicon Varistors Absolute Maximum Ratings Parameter Type No.

IF (mA) IFSM (A) Tj (°C) Tstg (°C) IF = 1mA VF (V) IF = 70mA DC characteristics IR (µA) VR (V) Others Rth (j- ) (°C/ W) Mass Fig.

(g) 50Hz 1cycle Sinewave SV 02YS SV 03YS SV 04YS SV 05YS SV 06YS 200 150 100 80 70 30 16 12 10 8 40 to +130 1.2±0.2 1.8±0.2 2.35±0.25 3.0±0.3 3.5±0.35 1.5±0.25 2.3±0.25 3.0±0.3 3.80±0.4 4.5±0.45 10 100 20 0.3 A Applications: Noise limiter, Instrument p
