SV049PH0012 Datasheet (Soshin)

SV049PH0012, VOC

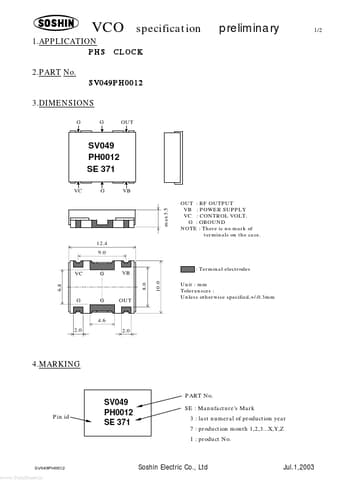

VCO 1.APPLICATION PHS 2.PART No.

specification preliminary 1/2 CLOCK SV049PH0012 3.DIMENSIONS G G OUT SV049 PH0012 œ VC SE 371 G VB SIDE VIEW OUT : RF OUTPUT VB : POWER SUPPLY VC : CONTROL VOLT.

G : GROUND NOTE : There is no mark of terminals on the case.

12.4 9.0 max3.5 VC 6.8 G VB 10.0 8.0 : Terminal electrodes Unit : mm Toleransces : Unless otherwise specified,+/-0.3mm BOTTOM VIEW G G OUT 4.6 2.0 2.0 4.MARKING PART No.

Pin id œ SV049 PH0012 SE 371 SE :
