Datasheet Details
Part number:
SV06YS, SV03YS
Manufacturer:
Sanken ↗ electric
File Size:
47.58 KB
Description:
(sv0xys) symmetrical type silicon varistors.
Note:
This datasheet PDF includes multiple part numbers: SV06YS, SV03YS.
Please refer to the document for exact specifications by model.

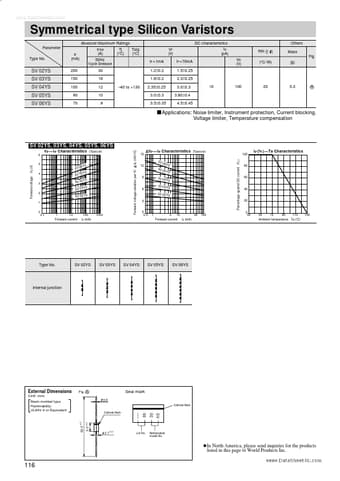

SV06YS, SV03YS, (SV0xYS) Symmetrical type Silicon Varistors
www.DataSheet4U.com Symmetrical type Silicon Varistors Absolute Maximum Ratings Parameter Type No.
IF (mA) IFSM (A) Tj (°C) Tstg (°C) IF = 1mA VF (V) IF = 70mA DC characteristics IR (µA) VR (V) Others Rth (j- ) (°C/ W) Mass Fig.
(g) 50Hz 1cycle Sinewave SV 02YS SV 03YS SV 04YS SV 05YS SV 06YS 200 150 100 80 70 30 16 12 10 8 40 to +130 1.2±0.2 1.8±0.2 2.35±0.25 3.0±0.3 3.5±0.35 1.5±0.25 2.3±0.25 3.0±0.3 3.80±0.4 4.5±0.45 10 100 20 0.3 A Applications: Noise limiter, Instrument p
