TFD312S - TO-220F 3A Thyristor with built-in Avalanche diode

TFD312S Description

TO-220F 3A Thyristor with built-in Avalanche diode TFD312S series s .

TFD312S Features

* qWith built-in Avalanche diode qAverage on-state current: IT(AV)=3A qGate trigger current: IGT=10mA max qIsolation voltage: VISO=1500V(50Hz AC, RMS, 1min. ) 13.0 min External Dimensions (Unit: mm) 8.4±0.2 0.2 4.0± 10.0±0.2 φ 3.3±0.2 4.2±0.2 C 0.5 2.8 0.3 16.9± A a b 1.35±0.15 1.35± +0.2 0.85

📥 Download Datasheet

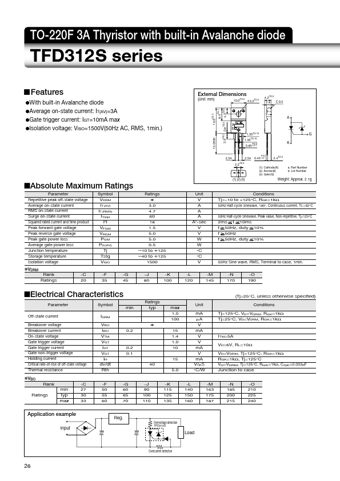

Preview of TFD312S PDF
datasheet Preview Page 2

Datasheet Details

Part number
TFD312S
Manufacturer
Sanken ↗ electric
File Size
53.20 KB
Datasheet
TFD312S_Sankenelectric.pdf
Description
TO-220F 3A Thyristor with built-in Avalanche diode
