TFDS3000

Integrated Infrared Transceiver Module IrDA (SIR)

TFDS3000 Features

* D D D D Compatible to IrDA standard SMD side view Low profile (height = 5.6 mm max.) Microcomputer compatible D D D D No external components Low power consumption Wide supply voltage range (3 to 5.5 V) AGC for EMI immunity Pin description: 1: IRED cathode 2: Rxd (output) 3: VCC (supply voltage) 4

TFDS3000 Datasheet (221.14 KB)

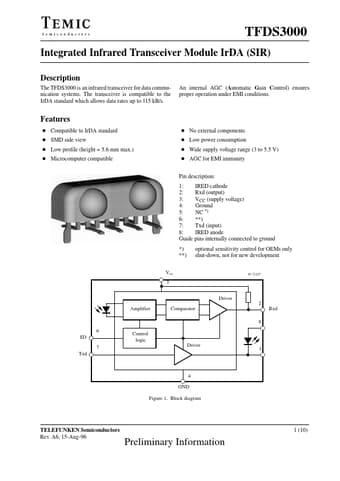

Preview of TFDS3000 PDF

Datasheet Details

Part number:

TFDS3000

Manufacturer:

TEMIC Semiconductors

File Size:

221.14 KB

Description:

Integrated infrared transceiver module irda (sir).
