TFDS4400

SIR Transceiver Module

TFDS4400 Features

* D Compliant to the latest IrDA physical layer standard (Up to 115.2 kbit/s), HP

* SIR®, Sharp ASK® and TV Remote D For Sunk Mounting at the PCB Edge

* 1.8 mm Height over Board D Operating 2.7 V to 5.5 V Applications D Low

* Power Consumption 1.0 (1.3) mA Supply Current @ 3 V (5 V

TFDS4400 General Description

The TFDS4400 is a low

*power infrared transceiver module compliant to the IrDA physical layer standard for infrared data communication, supporting IrDA speeds up to 115.2 kbit/s (SIR), HP-SIR, and carrier based remote control modes up to 100 kHz. Integrated within the transceiver module are a.

TFDS4400 Datasheet (520.44 KB)

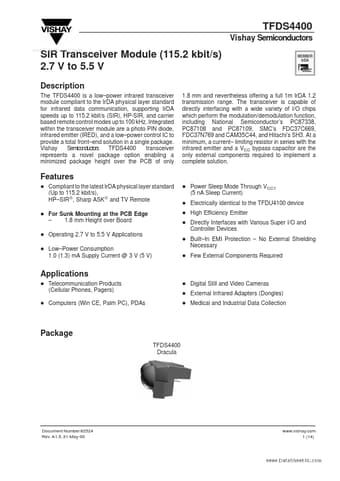

Preview of TFDS4400 PDF

Datasheet Details

Part number:

TFDS4400

Manufacturer:

Vishay ↗ Siliconix

File Size:

520.44 KB

Description:

Sir transceiver module.
