2SC6145A - Silicon NPN Transistor

Product Overview

Sanken

Datasheet Details

Part number	2SC6145A
Manufacturer	Sanken
File Size	938.37 KB
Description	Silicon NPN Transistor
Datasheet	2SC6145A Datasheet

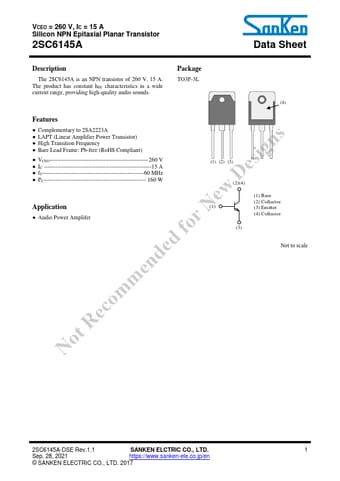

Additional preview pages of the 2SC6145A datasheet.

Product details

Description

Package The 2SC6145A is an NPN transistor of 260 V, 15 A.The product has constant hFE characteristics in a wide current range, providing high-quality audio sounds.TO3P-3L (4)

Features

Complementary to 2SA2223A s.
LAPT (Linear Amplifier Power Transistor).
High Transition Frequency n.
Bare Lead Frame: Pb-free (RoHS Compliant) ig.
VCEO--------------------------------------------------- 260 V s.
IC --------------------------------------------------------15 A e.
fT-----------------------------------------------------60 MHz D.
PC ----------------------------------------------------- 160 W ew.
