FKV575 MOSFET

FKV575 Description

MOS FET FKV575 *.

FKV575 Features

* High Current Capability (ID:75A (DC))
* Low on-resistance (RDS(on):7mΩ typ)
* Avalanche energy guarantee November, 2008
* Package
* FM20(TO220 Full Mold)

FKV575 Applications

* DC-DC Converters
* High speed switching
* Equivalent circuit D (2) G (1) S (3) Absolute maximum ratings Characteristic Symbol Rating (Ta=25°C） Unit Drain to Source Voltage VDSS 50 V Gate to Source Voltage VGSS ±20 V Continuous Drain Current ID ±75A A Pulsed Dr

📥 Download Datasheet

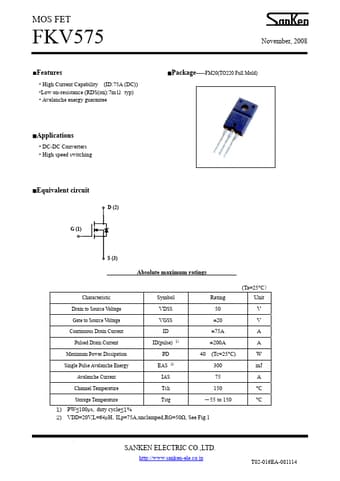

Preview of FKV575 PDF
datasheet Preview Page 2 datasheet Preview Page 3
