M1661S - TM1661S

Name: M1661S
SKU: M1661S-542776

Sanken

The M1661S by Sanken is a TM1661S. Below is the official datasheet preview.

Datasheet Details

Part number	M1661S
Manufacturer	Sanken
File Size	45.19 KB
Description	TM1661S
Datasheet	M1661S_Sanken.pdf

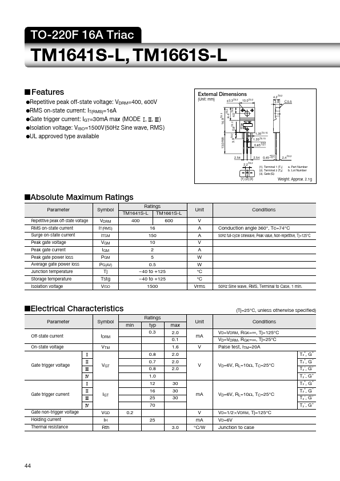

Additional preview pages of the M1661S datasheet.

qRepetitive peak off-state voltage: VDRM=400, 600V qRMS on-state current: IT(RMS)=16A qGate trigger current: IGT=30mA max (MODE , , ) qIsolation voltage: VISO=1500V (50Hz Sine wave, RMS ) qUL approved type available External Dimensions (Unit: mm) φ3.3±0.2 10.0±0.2 4.2±0.2 2.8 C 0.5 3.9±0.2 0.8±0.2 4.0±0.2 8.4±0.2 16.9±0.3 13.0 min a b 1.35±0.15 1.35±0.15 0.85 +.
00..12 2.54 2.54 0.45 +.
00..12 2.4±0.2 2.2±0.2 (1). Terminal 1 (T1) (2). Terminal 2 (T2) (3). Gate (G) a.
