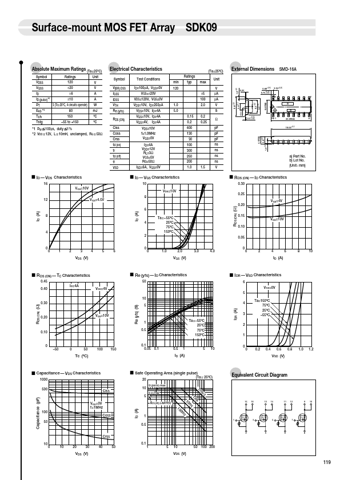

SDK09 Surface-mount MOSFET Array

Surface-mount MOS FET Array SDK09 Absolute Maximum Ratings (Ta=25ºC) Symbol Ratings Unit VDSS 120 V VGSS ±20 V ID ±6 A ID (pulse) 1 ±10 A PT 3 (Tc=25ºC, 4 circuits operate) W EAS 2 80 mJ Tch 150 ºC Tstg 55 to +150 ºC 1 PW 100µs, duty 1% 2 VDD = 12V, L = 10mH, unclamped, RG = 50Ω Electrical Characteristics Symbol V(BR) DSS IGSS IDSS VTH Re (yfs) RDS (ON) Ciss Coss Crss td (on) tr td (off) tf VSD Test Conditions ID=100µA, VGS=0V VGS=±20V V.
