SEC2424C Datasheet - Sanken

SEC2424C Chip LEDs

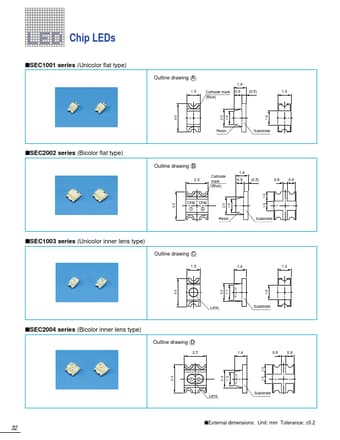

Chip LEDs sSEC1001 series (Unicolor flat type) Outline drawing A 1.4 1.5 Cathode mark (Blue) 0.9 (0.5) 1.3 3.0 2.0 1.5 Resin Substrate sSEC2002 series (Bicolor flat type) Outline drawing B 1.4 2.5 Cathode mark (Blue) 0.9 (0.5) 0.6 0.9 3.0 2.0 1.5 1 2 Resin Substrate sSEC1003 series (Unicolor inner lens type) Outline drawing C 1.5 1.4 1.3 3.0 2.0 1.7 Lens Substrate sSEC2004 series (Bicolor inner lens type) Outline drawing D 2.5 1.4 0.6 0.9 3.0 2.0 1.5 1 2 Lens Substrate.
