SEC04G72C1BC2MT-30R - SDRAM SO-DIMM

Product Overview

Swissbit

📥 Download Datasheet

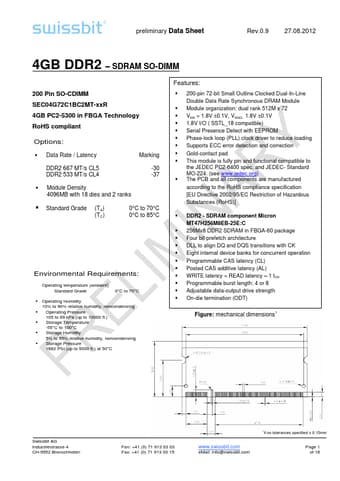

SEC04G72C1BC2MT-30R SDRAM SO-DIMM by Swissbit - Datasheet Preview — Datasheet preview – SEC04G72C1BC2MT-30R

Datasheet Details

Part number	SEC04G72C1BC2MT-30R
Manufacturer	Swissbit
File Size	499.12 KB
Description	SDRAM SO-DIMM
Datasheet	SEC04G72C1BC2MT-30R Datasheet
Note	This datasheet PDF includes multiple part numbers: SEC04G72C1BC2MT-30R, SEC04G72C1BC2MT-xxR. Please refer to the document for exact specifications by model.
Additional preview pages of the SEC04G72C1BC2MT-30R datasheet.

Product details

Features

200 Pin SO-CDIMM SEC04G72C1BC2MT-xxR 4GB PC2-5300 in FBGA Technology RoHS compliant Options:.
Data Rate / Latency DDR2 667 MT/s CL5 DDR2 533 MT/s CL4.
Module Density 4096MB with 18 dies and 2 ranks Standard Grade (TA) (TC) 0°C to 70°C 0°C to 85°C Marking -30 -37.
200-pin 72-bit Small Outline Clocked Dual-In-Line Double Data Rate Synchronous DRAM Module Module organization: dual rank 512M x 72 VDD = 1.8V ±0.1V, VDDQ 1.8V ±0.1V.
