SIM6891MDN, SIM6891MD Datasheet - Sanken

SIM6891MDN 600V High Voltage 3-phase Motor Drivers

The SIM689xM series are high voltage 3-phase motor drivers in which transistors, pre-drive circuits, and bootstrap circuits (diodes and resistors) are highly integrated. These products can optimally control the inverter systems of low- to medium-capacity motors that require universal input standards.

SIM6891MDN Features

* Pb-free (RoHS Compliant)

* Temperature Sensing Function

* Built-in Bootstrap Diodes with Current Limiting Resistors (60 Ω)

* CMOS-compatible Input (3.3 V or 5 V)

* Isolation Voltage: 1500 V (for 1 min) UL-recognized Component (File No.: E118037)

* Fault Signal Output at Pro

SIM6891MD-Sanken.pdf

This datasheet PDF includes multiple part numbers: SIM6891MDN, SIM6891MD. Please refer to the document for exact specifications by model.

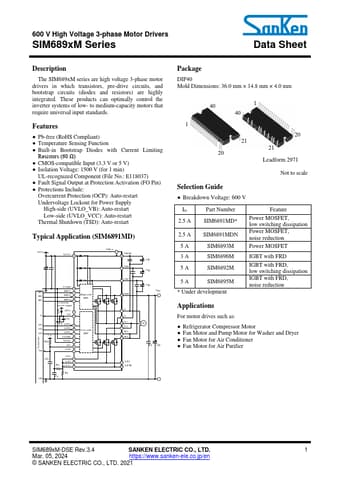

SIM6891MDN Datasheet Preview Page 2 SIM6891MDN Datasheet Preview Page 3

Datasheet Details

Part number:

SIM6891MDN, SIM6891MD

Manufacturer:

Sanken ↗

File Size:

0.98 MB

Description:

600v high voltage 3-phase motor drivers.

Note:

This datasheet PDF includes multiple part numbers: SIM6891MDN, SIM6891MD.
Please refer to the document for exact specifications by model.
