SIM6896M, SIM6891MD, 600V High Voltage 3-phase Motor Drivers

600 V High Voltage 3-phase Motor Drivers SIM689xM Series Data Sheet .
The SIM689xM series are high voltage 3-phase motor drivers in which transistors, pre-drive circuits, and bootstrap circuits (diodes and resistors) are.

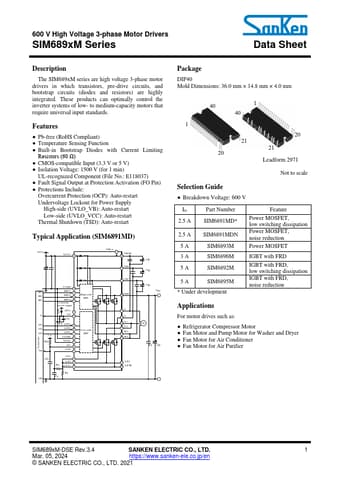

datasheet Preview Page 1 from Datasheet4u.com

SIM6891MD-Sanken.pdf

SIM6896M Datasheet Preview — This datasheet PDF includes multiple part numbers: SIM6896M, SIM6891MD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SIM6896M, SIM6891MD

Manufacturer:

Sanken ↗

File Size:

0.98 MB

Description:

600V High Voltage 3-phase Motor Drivers

Note:

This datasheet PDF includes multiple part numbers: SIM6896M, SIM6891MD.
Please refer to the document for exact specifications by model.

Features

* Pb-free (RoHS Compliant)
* Temperature Sensing Function
* Built-in Bootstrap Diodes with Current Limiting Resistors (60 Ω)
* CMOS-compatible Input (3.3 V or 5 V)
* Isolation Voltage: 1500 V (for 1 min) UL-recognized Component (File No. : E118037)
* Fault Signal Output at Pro

Applications

* For motor drives such as:
* Refrigerator Compressor Motor
* Fan Motor and Pump Motor for Washer and Dryer
* Fan Motor for Air Conditioner
* Fan Motor for Air Purifier SIM689xM-DSE Rev.3.4 SANKEN ELECTRIC CO. , LTD. 1 Mar. 05, 2024 https://www. sanken-ele. co. jp/en © SANKEN ELECTRI
