SIM6892M, SIM6891MD - 600V High Voltage 3-phase Motor Drivers

Sanken

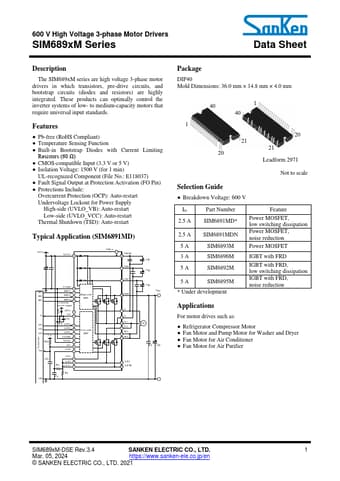

SIM6892M Datasheet Preview — This datasheet PDF includes multiple part numbers: SIM6892M, SIM6891MD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SIM6892M, SIM6891MD
Manufacturer	Sanken ↗
File Size	0.98 MB
Description	600V High Voltage 3-phase Motor Drivers
Datasheet	SIM6891MD-Sanken.pdf
Note	This datasheet PDF includes multiple part numbers: SIM6892M, SIM6891MD. Please refer to the document for exact specifications by model.

SIM6892M Product details

Description

The SIM689xM series are high voltage 3-phase motor drivers in which transistors, pre-drive circuits, and bootstrap circuits (diodes and resistors) are highly integrated.

Features

Pb-free (RoHS Compliant).
Temperature Sensing Function.
Built-in Bootstrap Diodes with Current Limiting Resistors (60 Ω).
CMOS-compatible Input (3.3 V or 5 V).
Isolation Voltage: 1500 V (for 1 min) UL-recognized Component (File No. : E118037).
Fault Signal Output at Protection Activation (FO Pin).
Protections Include: Overcurrent Protection (OCP): Auto-restart Undervoltage Lockout for Power Supply High-side (UVLO_VB): Auto-restart Low-side (UVLO_VCC): Auto-rest.
