SSM1002MA

High Voltage 3-Phase Motor Driver

SSM1002MA Features

* ▪ Each half-bridge circuit consists of a pre-driver circuit that is completely independent from the others ▪ Protection against simultaneous high- and low-side turning on ▪ Bootstrap diodes with series resistors for suppressing inrush current are incorporated ▪ CMOS compatible input (3.3 to 5 V) ▪ D

SSM1002MA General Description

The SSM1002MA inverter power module (IPM) device provides a robust, highly-integrated solution for optimally controlling 3-phase motor power inverter systems and variable speed control systems used in energy-conserving designs to drive motors of residential and commercial appliances. These ICs take .

SSM1002MA Datasheet (527.45 KB)

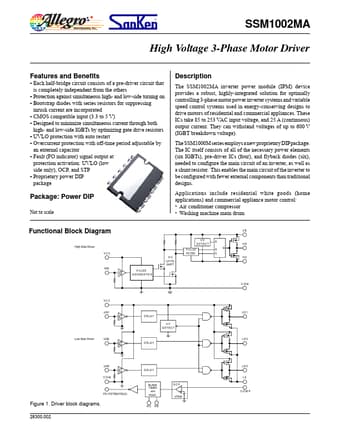

Preview of SSM1002MA PDF

Datasheet Details

Part number:

SSM1002MA

Manufacturer:

Sanken ↗

File Size:

527.45 KB

Description:

High voltage 3-phase motor driver.
