SSM1003MA, High Voltage 3-Phase Motor Driver

SSM1003MA High Voltage 3-Phase Motor Driver .
The SSM1003MA inverter power module (IPM) device provides a robust, highly-integrated solution for optimally controlling 3-phase motor power inverter.

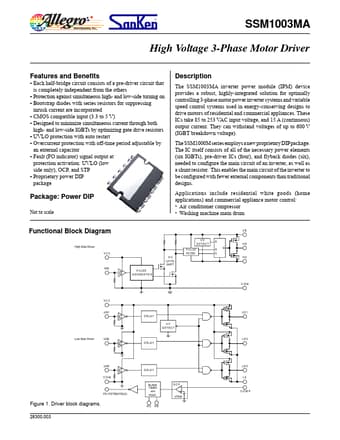

datasheet Preview Page 1 from Datasheet4u.com

SSM1003MA_Sanken.pdf

SSM1003MA Datasheet Preview — Preview of SSM1003MA PDF

Datasheet Details

Part number:

SSM1003MA

Manufacturer:

Sanken ↗

File Size:

527.93 KB

Description:

High Voltage 3-Phase Motor Driver

Features

* ▪ Each half-bridge circuit consists of a pre-driver circuit that is completely independent from the others ▪ Protection against simultaneous high- and low-side turning on ▪ Bootstrap diodes with series resistors for suppressing inrush current are incorporated ▪ CMOS compatible input (3.3 to 5 V) ▪ D

Applications

* include residential white goods (home applications) and commercial appliance motor control:
* Air conditioner compressor
* Washing machine main drum www. DataSheet. co. kr Package: Power DIP Not to scale Functional Block Diagram High-Side Driver VCC HV LEV EL SHIFT HIN P U LSE U LS E
