SSM1004MA High Voltage 3-Phase Motor Driver

📥 Download Datasheet  Datasheet Preview Page 1

Description

SSM1004MA High Voltage 3-Phase Motor Driver .
The SSM1004MA inverter power module (IPM) device provides a robust, highly-integrated solution for optimally controlling 3-phase motor power inverter.

📥 Download Datasheet

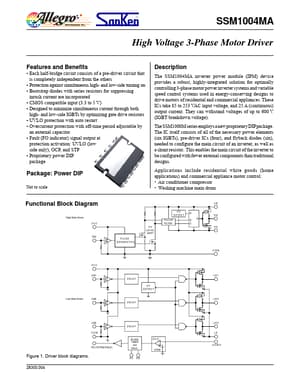

Preview of SSM1004MA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SSM1004MA
Manufacturer
Sanken ↗
File Size
527.88 KB
Datasheet
SSM1004MA_Sanken.pdf
Description
High Voltage 3-Phase Motor Driver

Features

* ▪ Each half-bridge circuit consists of a pre-driver circuit that is completely independent from the others ▪ Protection against simultaneous high- and low-side turning on ▪ Bootstrap diodes with series resistors for suppressing inrush current are incorporated ▪ CMOS compatible input (3.3 to 5 V) ▪ D

Applications

* include residential white goods (home applications) and commercial appliance motor control:
* Air conditioner compressor
* Washing machine main drum www. DataSheet. co. kr Package: Power DIP Not to scale Functional Block Diagram High-Side Driver VCC HV LEV EL SHIFT HIN P U LSE U LS E
